GSC1004 - Simply45® S45-2512 12-Port Wall Mount Cat5e UTP Patch Panel with loaded rear 110 IDC punch down and 89B Mounting Bracket
Item: GSC1004 | Model: S45-2512

Brand: Simply45    Last Ordered:

  • Same Day Shipping


Questions Email
Call Today
Call Today (800) 844-9555

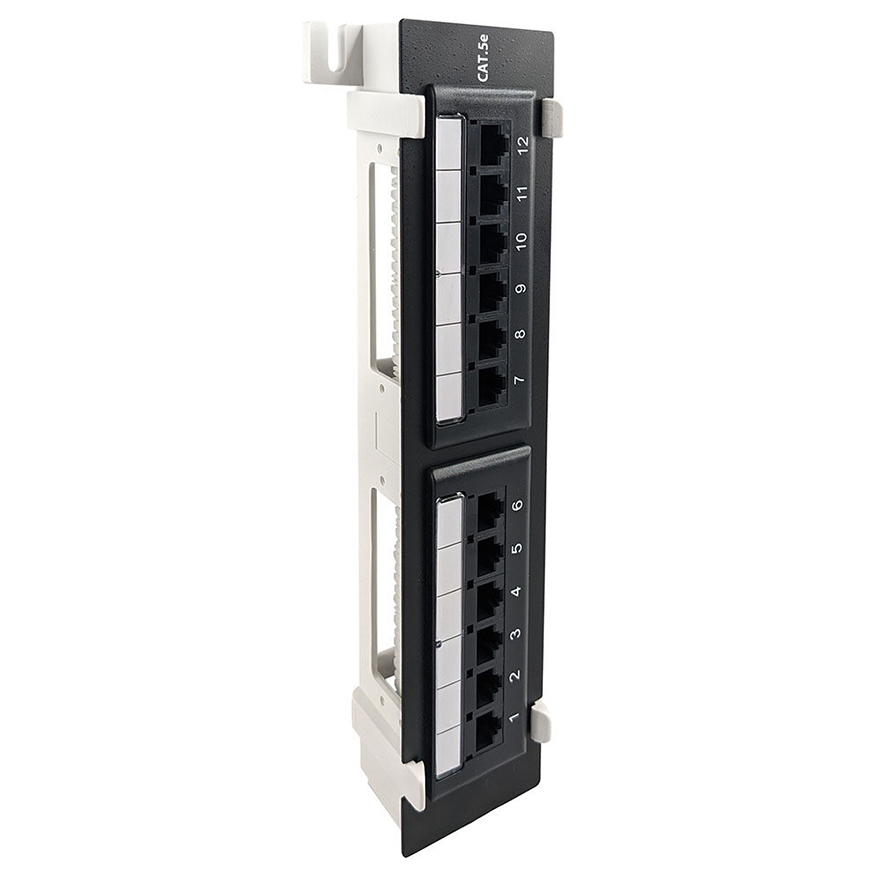

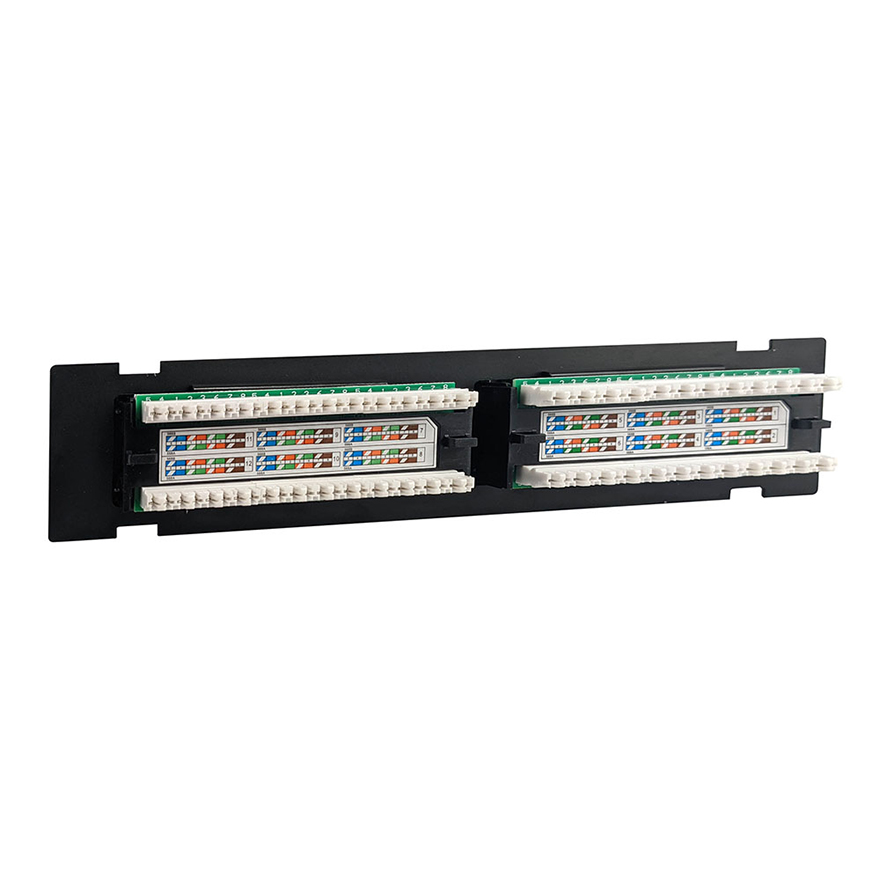

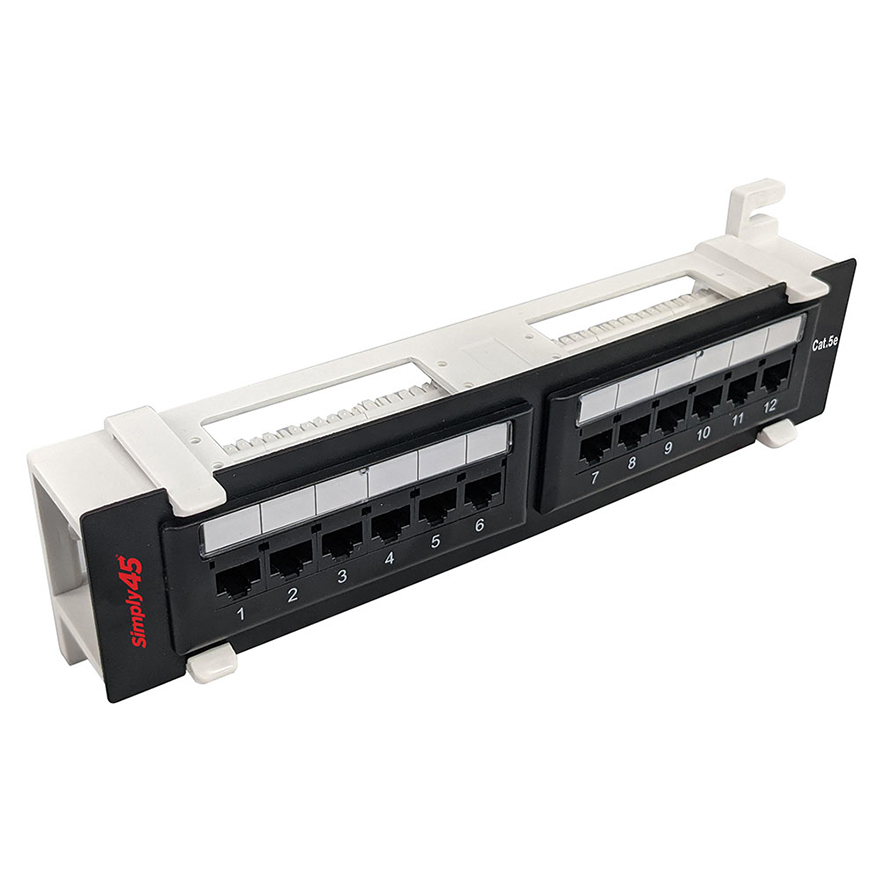

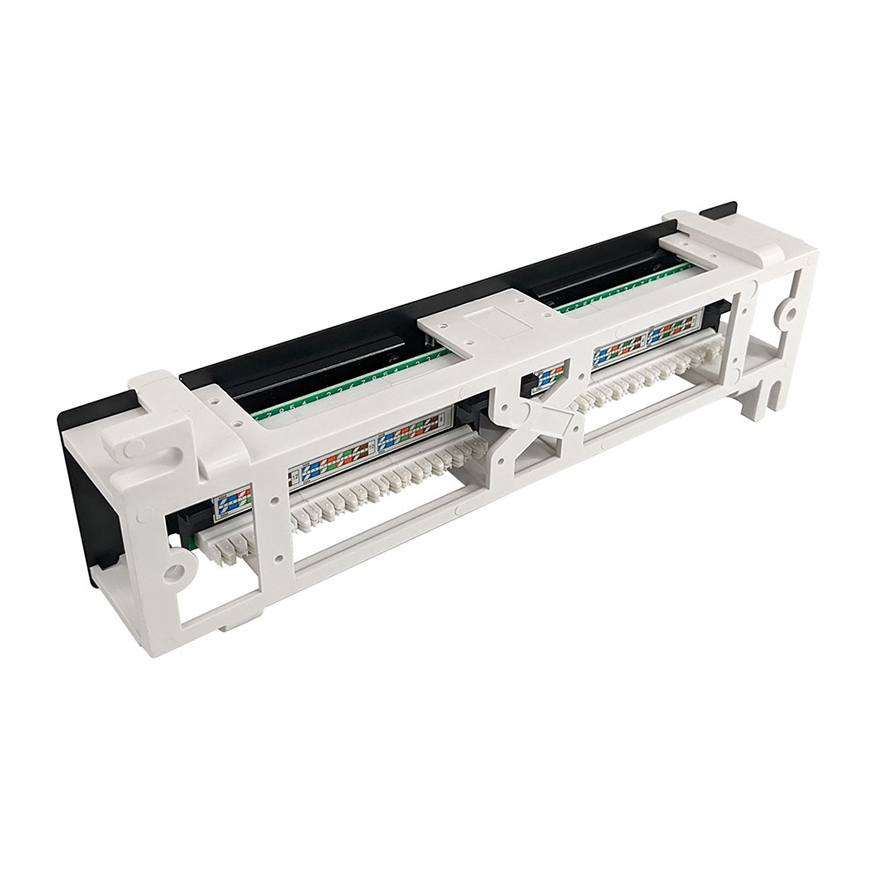

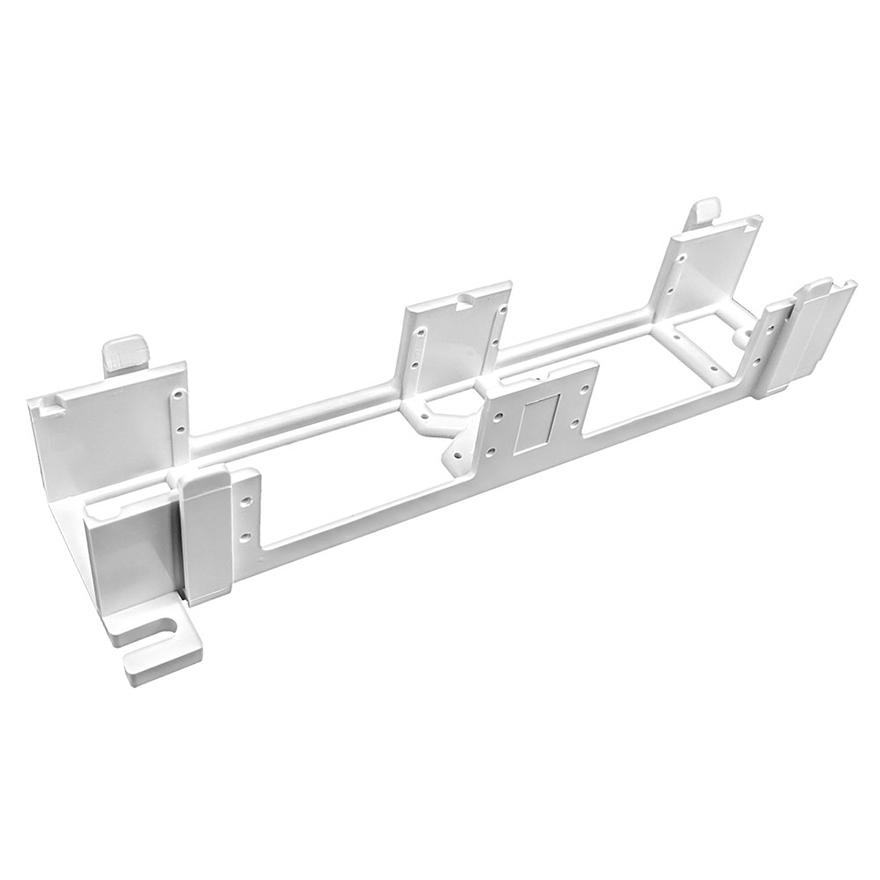

Simply45® S45-2512 12-Port Wall Mount Cat5e UTP Patch Panel with loaded rear 110 IDC punch down and 89B Mounting Bracket

Great for mixed-media use! The Simply45® Patch Panel is IDC compatible for 110 and Krone tools and designed with a Scratch-resistant powder-coat finish. The 12 universal ports are numbered color-coded, and even boast gold plated RJ45 port contacts.

Features

This Patch Panel is RoHS and Reach compliant. Best of all it can be mounted vertically or horizontally.

Go Simply Connect®

Go Simply Connect offers 20+ years of streamlining the installation process for wire, cable and field terminations. Their unique and innovative designs provide installers with the confidence to achieve the highest performing connectivity solutions for technology used today.

There are no support documents available for this product at this time.
Weight: 1 lb / 0.454 kg
Dimensions: 3.0" x 11.25" x 2.5" / 76 mm x 286 mm x 64 mm
RJ45 port contacts: Gold Plated
ANSI/TIA: 568.2-D
ISO/IEC: 11801 Class
PoE IEEE: 802.3bt.
Compliance: RoHS & Reach
